Wireless remote control electric rolling gate

In daily life, the electric rolling gate is suitable for family, shop, garage, market, hospital, warehouse and company. The control of electric rolling gate is divided into wired control and wireless control.

Wired control systems include rolling door, motor, and manual switch. The user needs to go to the edge of the rolling gate before using the manual switch to open/close the rolling door. If you want to open the door when you are in the car, you have to get off and press the manual switch. In winter it is very inconvenient.

The wireless control system includes rolling door, motor, remote controls and a wireless receiver connected to the motor. The user can use the remote control to turn on/off the rolling door at a reasonable distance. When the user presses the remote control button, the remote will send an RF wireless signal. This RF wireless signal can pass through trees, walls or doors and windows. After the wireless receiver receives this RF wireless signal that will control the motor to turn the rolling door on/off. When you arrive at home, you don’t have to get out of your car as it travels near the roller shutter door. Only need to remote control directly into the car to turn it on/off. Especially in the cold winter, the wireless control system is very necessary and convenient.

The rolling door is divided into two types according to its motor: the chain motor rolling gate and the tubular motor rolling gate, which rotate the rotating shaft of the rolling gate through the motor. The chain motor is usually installed outside the shaft, as shown in figure 1. The chain motor rotates the rotary shaft and the rolling gate through gears and chains. The chain motor is suitable for heavier and larger rolling gates. Tubular motors are usually installed inside the rotary shaft, as shown in figure 2. The tubular motor directly rotates the rotary shaft and the gate. The tubular motor is suitable for the smaller and lighter rolling gate. When the rolling gate is opened or closed to the appropriate position, the motor can be automatically closed by the limit switch.

Figure 1



Figure 2

The chain motor rolling gate and tubular motor rolling gate use different wireless control kits.

The chain motor gate is suitable for wireless control kit model 002071 , as shown in figure 3, this receiver is suitable for the maximum power 1000W motor. The receiver's terminal has 6 wires, 2 black lines are connected to 220V AC power supply, the white line is opening door line, the yellow line is closing door line, the red lineis the output line, and the green line is input line. The remote control has four buttons: up, down, stop and lock. When the remote control is locked, the other three buttons will not work, in order to avoid disoperation.

Figure 3

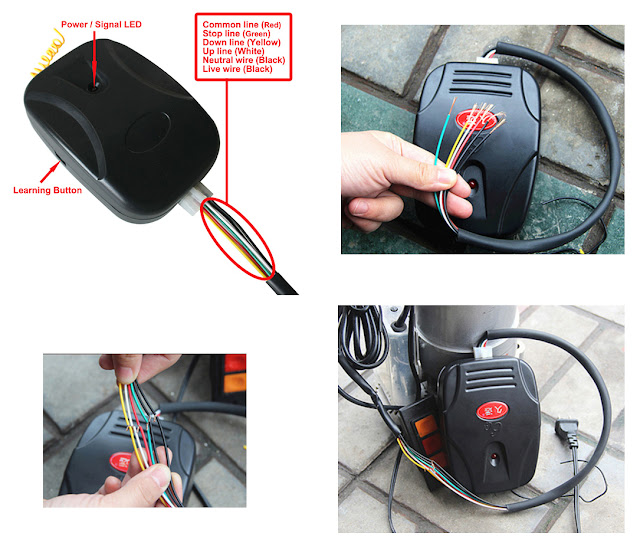

As show in figure 4 for the connection diagram of this wireless control kit:

Tubular motor gate is suitable for wireless control  model 0020709 (S1FG-AC220 & 2XB-4L), shown in figure 5. This receiver is suitable for the maximum power 400W motor. The receiver's terminal has 4 connecting lines, the black line is the opening door line, the brown line is the closing door line, the blue line is the public line, and the yellow-green line is the ground line. There are also three manual buttons on the receiver. Remote control has four buttons: up, down, stop and lock, which control opening, closing, stopping and locking respectively. When the remote control is locked, the other three buttons will be shut down, to avoid disoperation.

Figure 5

As show in figure 6 for the connection diagram of this wireless control kit：
